HARSLE Smart CNC press brake WE67K

Name: HARSLE Smart CNC press brake WE67K
Brand: HARSLE Smart CNC press brake WE67K
SKU: skudetail166
Availability: InStock

Price: contact

HARSLE Smart CNC press brake WE67K can support up to 4+1 axes and higher working speed, which is the best choice to meet the needs in today's competitive market.

Contact to purchase Download Catalogue

Product details

HARSLE Smart CNC press brake WE67K has a 7" wide color LCD screen and a good control system. Axes and auxiliary functions are selectable and programmable. Bending tool/material/product library. Calculate bending angle automatically. USB memory sticks are available across all product lines. Preview 2D graphics for parts. Full hardware and software compatibility across all product lines.

Rigid frame structure & dual hydraulic cylinders

The base of HARSLE Smart CNC press brake WE67K is a sturdy one-piece frame made from factory-approved high-yield steel that is precise and reliable with a 10-year warranty on standard machines.

Dual hydraulic cylinders located on either side of the ram provide faster approach speeds. The cylinders are synchronized to provide smooth movement resulting in precise ram positioning to 0.0004'' accuracy.

Wide frame spacing

HARSLE Smart CNC press brake WE67K produces can easily accommodate parts with deep curves and long tooling requirements due to our open space design. HARSLE's Smart-bend series CNC sheet metal bending machines typically have deeper shaft-to-machining center distances, larger opening heights and longer stroke lengths than any other manufacturer on the market.

Compensation system

Manual and CNC adjustable compensation systems ensure a constant bending angle over the entire length of the machine. This is achieved by applying a preload to the machine, to compensate for any deflection that may occur under load or to compensate for any tool wear, so that the contact surfaces under load are parallel to the together.

With the CNC control system, the press brake control is pre-programmed with machine characteristics and deflection data. With manual editing, you can easily develop a simple spreadsheet or chart for each application.

Alignment system

An accurate measuring system for the application significantly positively affects the volume and accuracy of the manufactured part.

Standard configuration
S530 features

Program axis positions in table mode with automatic syntax checking, automatic calculation of R and Z positions as well as bending and peak loads.
Edit 2D graphics for molds.
Complete offline graphical programming on
Standard PC, via emulation program.
IEC 61131-3 PLC programming language with functional utilities written in IL or "C" language is available to manufacturers.
Axes and auxiliary functions are selectable and programmable.
USB memory sticks are available across all product lines.
Full hardware and software compatibility across all product lines.

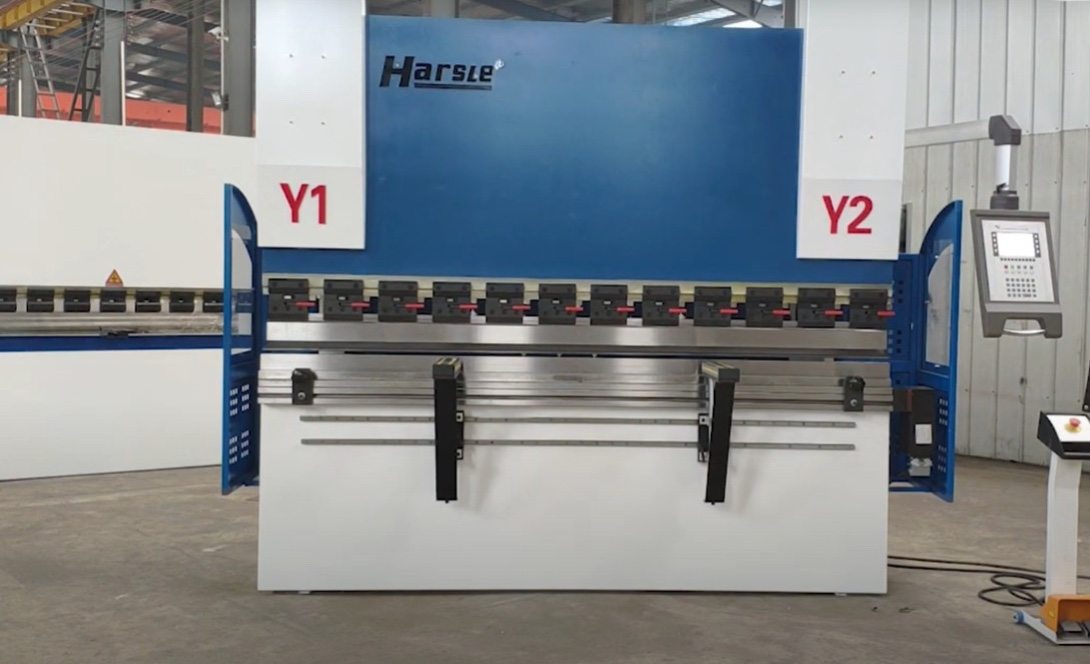

harsle-smart-bend-machine

Model		63T/1500	63T/2500	110T/3200	100T/4000	125T/3200	125T/4000	160T/3200	160T/4000	250T/3200	250T/4000
Bending Length	mm	1500	2500	3200	4200	3200	4000	3200	4000	3200	4000
Bending Capacity	KN	630	630	1100	1100	1250	1250	1600	1600	2500	2500
Column Distance	mm	1100	2060	2700	3300	2700	3300	2700	3300	2700	3300
Gap	mm	370	370	400	400	400	400	400	400	400	400
Daylight Opening	mm	350	350	400	400	400	400	400	400	400	400
Stroke	mm	200	200	200	200	200	200	200	200	200	200
Table Height	mm	880	880	880	880	880	880	880	880	880	880
Table Width	mm	150	150	200	200	200	200	200	200	200	200
Fast Approach Speed	mm/s	200	200	200	200	200	200	200	200	200	200
Max. Bending Speed	mm/s	10	10	10	10	10	10	10	10	10	10
Return Speed	mm/s	160	160	160	160	160	160	140	140	140	140
Motor Power	KW	5.5	5.5	7.5	7.5	11	11	11	11	15	15
Length	mm	1825	2825	3500	4500	3500	4500	3500	4500	3500	4500
Width	mm	1650	1650	1650	1650	1650	1650	1650	1650	1730	1730
Height	mm	2600	2430	2540	2540	2540	2540	2580	2580	2580	2580
Weight	kg	4600	5600	8000	9500	8500	90000	10000	12000	15000	17000
Model		300T/3200	300T/4000	300T/5000	400T/4000	400T/5000	400T/6000	500T/4000	500T/5000	500T/6000	600T/6000
Bending Length	mm	3200	4000	5000	4000	5000	6000	4000	5000	6000	6000
Bending Capacity	KN	3000	3000	3000	4000	4000	4000	5000	5000	5000	6000
Column Distance	mm	2600	3150	4050	3150	4050	5050	3050	4050	5050	5050
Gap	mm	400	400	400	400	400	400	400	400	400	400
Daylight Opening	mm	400	400	400	400	400	400	610	610	610	650
Stroke	mm	200	200	200	320	320	320	320	320	320	320
Table Height	mm	880	880	880	880	880	880	990	990	990	990
Table Width	mm	250	250	250	250	250	250	300	300	300	300
Fast Approach Speed	mm/s	80	80	80	80	80	80	75	75	75	80
Max. Bending Speed	mm/s	8	8	8	8	8	8	8	8	8	8
Return Speed	mm/s	85	85	85	80	80	80	75	75	75	80
Motor Power	KW	18.5	18.5	18.5	30	30	30	37	37	37	40
Length	mm	3300	4300	5300	4300	5300	6400	4500	5500	6500	6500
Width	mm	1950	1950	1950	2100	2100	2100	2700	2700	2700	2700
Height	mm	2670	2670	2620	3100	3100	3170	5000	5000	5000	5000
Weight	kg	20000	22000	26000	27000	32000	38000	40000	45000	55000	65000
