ADH Press Brake model WAD/FMC

ADH Press Brake model WAD/FMC

Price: contact

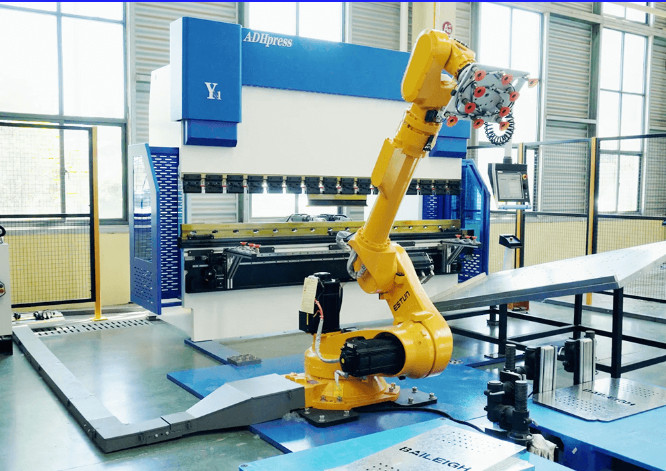

ADH Press Brake model WAD/FMC has a large and wide billet bending capacity that can help reduce labor intensity, enable batch processing and improve the consistency of workpiece accuracy.

Contact to purchase Download Catalogue

Product details

Main features of ADH Press Brake model WAD/FMC

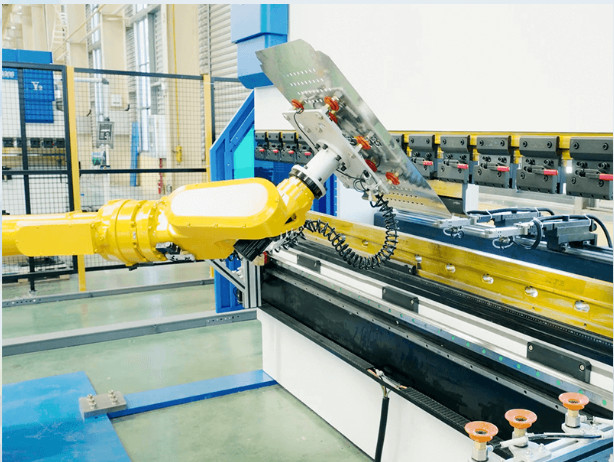

Flexible Bending Unit

ADH Press Brake model WAD/FMC can bend large and wide workpieces can help reduce labor intensity, enable batch processing, and improve the consistency of workpiece precision.

It can be combined with various automatic bending units to achieve uninterrupted and continuous processing, thereby enhancing production efficiency.

By minimizing potential safety hazards during human-computer interaction and enabling intelligent production, it can be seamlessly integrated with factory management software such as MES and ERP.
 wad-fmc-nc-bending-unit

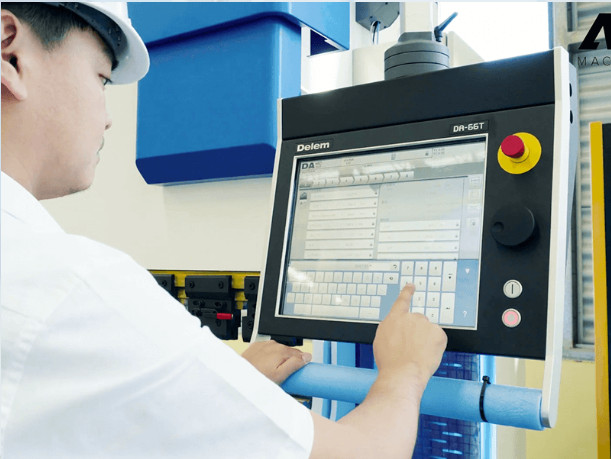

CNC Controller

The CNC system automatically controls the lifting compensation of the worktable based on the process state of the bending sheet, thereby ensuring a uniform and consistent angle across the entire length of the workpiece. wad-fmc-nc-controller

Variable Distance Gripper

Customized to the size range of the customer's bent workpieces, ADH Press Brake model WAD/FMC can grip and bend a variety of workpieces, thereby reducing the need to replace the gripper and improving automation efficiency.

Flip Frame

Featuring a carbon steel plastic spraying structure, the robot places the workpiece to be turned over on the front suction cup, and then grasps the workpiece from the back of the turning frame.

Centering Stage

The carbon steel plastic spraying structure, combined with an inclined table top layout, makes it easier to achieve automatic centering of products.

Robot Visual Positioning Device

The vision system guides the robot to automatically adjust the position of the gripper and accurately grasp the workpiece. This enables communication between machine vision and the robot, as well as facilitates the transformation of coordinate systems.

Robot Gripper Quick Change Device

The robot gripper quick change device can automatically switch between different suction cup grippers using the robot, making the robot's applications more flexible. The gripper quick change device consists of a main plate that is installed on the flange at the end of the robot arm, and multiple tool plates that can accommodate different grippers.
Model Bending Force Bending Length Oil Tank Aprroaching Speed Ram Speed Return Speed Throat Depth Stroke Daylight Step/Servo Motor Weight Dimensions
(A) (D) (C) (E)
Unit KN mm mm/s mm/s mm/s mm mm mm mm KW Ton L*W*H mm
50T/1300 500 1300 220 15.5 200 1120 300 150 460 6 4.5 1800*1500*2300
70T/1600 700 1600 220 15.5 200 1300 300 150 460 6 5.3 2300*1600*2500
70T/2500 700 2500 220 15.5 200 2050 300 150 460 6 6 3100*1600*2500
80T/2500 800 2500 220 15 185 2050 300 150 460 8.7 6.5 3100*1600*2600
110T/2500 1100 2500 220 15 195 2050 400 200 480 10.8 8.5 3100*1800*2600
110T/3200 1100 3200 220 15 195 2700 400 200 480 10.8 8.5 3800*1800*2600
110T/4000 1100 4000 220 15 195 3100 400 200 480 10.8 9.5 4600*1800*2600
110T/4100 1100 4100 220 15 195 3600 400 200 480 10.8 10.0 4700*1800*2700
135T/3200 1350 3200 220 12 150 2700 400 200 480 10.8 10 3800*1800*2700
135T/4000 1350 4000 220 12 150 3100 400 200 480 10.8 11 4600*1800*2700
135T/4100 1350 4100 220 12 150 3600 400 200 480 10.8 11 4700*1800*2700
170T/3200 1700 3200 160 12 122 2700 450 200 480 13.2 11.8 3800*2000*2800
170T/4000 1700 4000 160 12 122 3100 450 200 480 13.2 13 4600*2000*2800
170T/4100 1700 4100 160 12 122 3600 450 200 480 13.2 13 4700*2000*2800
220T/3200 2200 3200 160 11.5 135 2600 450 200 480 16.7 13 3800*2200*2850
220T/4000 2200 4000 160 11.5 135 3100 450 200 480 16.7 15 4600*2200*2850
250T/3200 2500 3200 100 10.5 130 2600 450 250 540 16.7 16.5 3500*2000*2900
250T/4000 2500 4000 100 10.5 130 3100 450 250 540 16.7 18.8 4300*2100*3100
250T/5000 2500 5000 100 10.5 130 3800 450 250 540 16.7 23 5300*2150*3150
250T/6000 2500 6000 100 10.5 130 4800 450 250 540 16.7 25 6300*2150*3150
