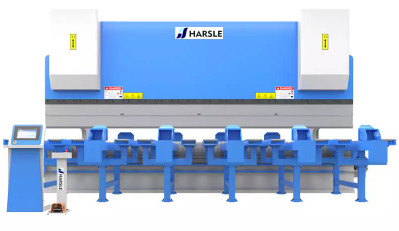

Harsle giant press brake

Harsle giant press brake is a colossal piece of machinery that stands as a testament to industrial power and precision. Its imposing frame is constructed from heavy-duty materials, often utilizing thick steel beams and reinforced structures to handle the immense forces generated during the bending process. The machine's overall size and weight are impressive, making it capable of handling exceptionally large sheets of metal.

Hydraulic system

At the heart of the giant press brake is its hydraulic or mechanical system, which exerts immense pressure to bend and shape the metal. The hydraulic system utilizes hydraulic cylinders and a complex network of pipes and valves to control the application of force. Alternatively, the mechanical system uses a system of gears, levers, and counterweights to achieve the same goal. This force is precisely controlled and adjusted to meet the specific requirements of each metal bending operation.

Crowning system

Harsle giant press brake features a large, flat table where the metal sheet is placed. This table is equipped with various tools, such as punches and dies, which are carefully selected based on the desired bend angle and shape. The operator feeds the sheet into the machine and positions it accurately, ensuring that it aligns perfectly with the tools. The control panel, often equipped with advanced digital displays and user-friendly interfaces, allows the operator to input the desired bending parameters.

As the press brake's immense force is applied, the metal sheet is gradually bent around the chosen die shape. The machine's precision is remarkable, capable of achieving consistent bends even across large surface areas. Safety measures, such as guards and emergency stop buttons, are integrated into the design to ensure the well-being of operators and bystanders.

Outstanding advantages

● The entire structure of the welding machine achieves high hardness; The machine designed with ANSYS software can ensure the reliability and precision of the CNC press brake.

● WE67K series CNC press brake was redesigned based on user preferences to increase productivity and keep costs to a minimum with high bending precision and low maintenance costs.

● Achieve high quality and repeatable bending precision using synchronous cylinders and proportional valves

● Bending angle calculation and back gauge position calculation can be performed by entering metal sheet material information, sheet size and punch and die dimensions.

● The bending system can work automatically with the CNC controller to achieve higher bending accuracy and linearity. Hydraulic and motorized lifting system are optional.

● Multi-axis CNC back gauge can work well with workpieces of different shapes.

Overall, Harsle giant press brake is a marvel of engineering that combines power, precision, and technology to shape heavy sheets of metal into intricate forms, angles, and curves. Its role in modern manufacturing is indispensable, contributing to the creation of diverse products that form the backbone of various industries.
