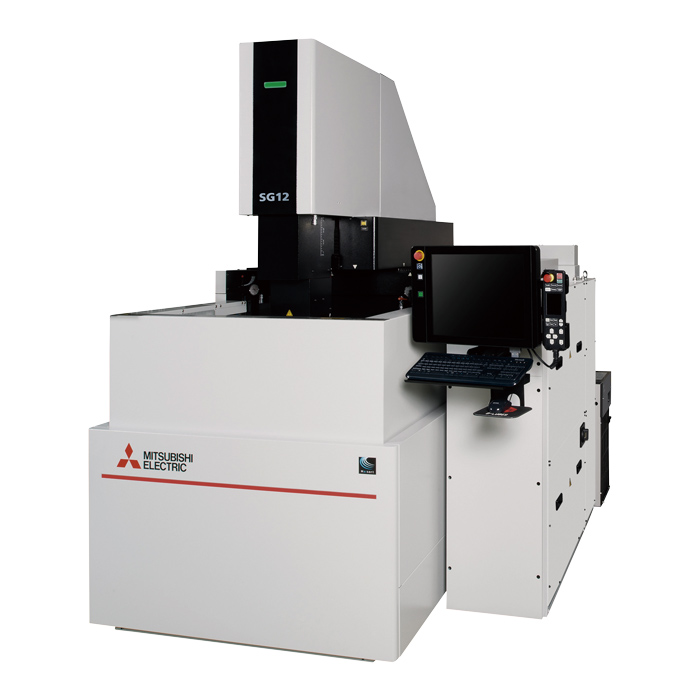

Die Sinker Electric Discharge Machine (EDM) SG Series Mitsubishi Electric

Machining Accuracy

Electric discharge machine (EDM) SG series can machine from the fine shape to large size shape can be achieved with high accuracy
and high productivity.

• High rigidity construction is realized by structural change of cast and Middle-Large area machining performance is improved(machining time,electrode weak).
• Automatic depth recognition and stable servo control using "Maisart" make uniform surface finish

Productivity

Sensing technology (D-CUBES) and AI technology (Maisart) optimize machining in real time.
IDPM3

• Machining speed is up to 50% faster with the combination of highly accelerated (1.6G) jump control and aduptive control "IDPM3".
• Suppresses edge wear enables single electrode machining. Electrode cost, setup and machining time are significantly reduced.
  Maisart
• Optimize the jump length according to the machining dimension and shape.
• Automatically recognizes distinct depth of machining to improve stability.
• Plunge machining reduces machining time by up to 30%.

Well operated

Electric discharge machine (EDM) SG series operates quickly and optimizes outstanding performance with easy operation, reduced human error and connectivity to help improve customer productivity.

• 19 inch touch screen.
• The HOME screen is like a smartphone. you can reach various screens using the "shortcut menu".
• The Navigation Menu supports operations from setup to machining.
• A new slim operator box is standard equipment.
• The best conditions are selected by selecting factors and narrowing the search. Adjustment bar to select "Speed" or "Evenly".
• Action menu" helps your operations. Displays "ESPER D-CUBES" tabular programming.
• Centralized management of consumables. Consumables screen manages usage time and consumable replacement log.
• Energy saving function to reduce power consumption. Reduces standby power consumption when idle at night, etc.
