ADH NC Press Brake model WC67K/WC67E

Outstanding features of the ADH NC Press Brake model WC67K/WC67E

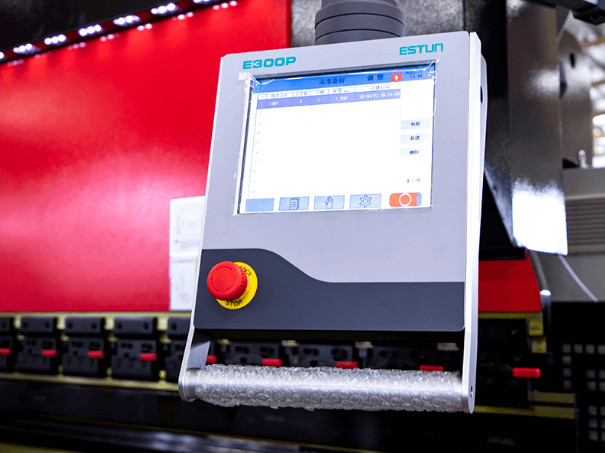

NC controller

ADH NC Press Brake model WC67K/WC67E uses the Estun E300P series controller, which is capable of controlling the X and Y axes, allowing editing of bending steps directly through the controller. Furthermore, the Etune E300P, Delem DA41T and Cybelec CT8 controllers provide additional angle programming, touchscreen and R-axis control functionality, all of which contribute to making the bending process more efficient and user-friendly. more user-friendly. NC controller

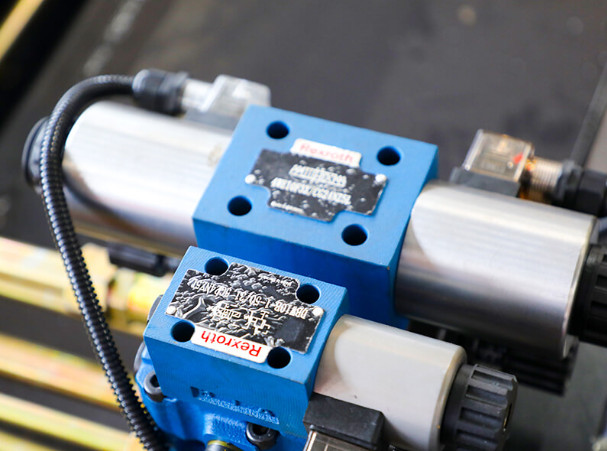

Hydraulic system

ADH NC Press Brake model WC67K/WC67E is equipped with high quality hydraulic valves, especially from the Rexroth brand. These valves are capable of withstanding high pressures, are durable and require minimal maintenance. During the up and down process, our machine is capable of performing several actions including fast deceleration, slow deceleration, bending at working speed, fast return and emergency ram stop. AHD's presses have the ability to work continuously under rated load, the hydraulic system maintains stability, accuracy and is completely leak-free. Hydraulic-NC

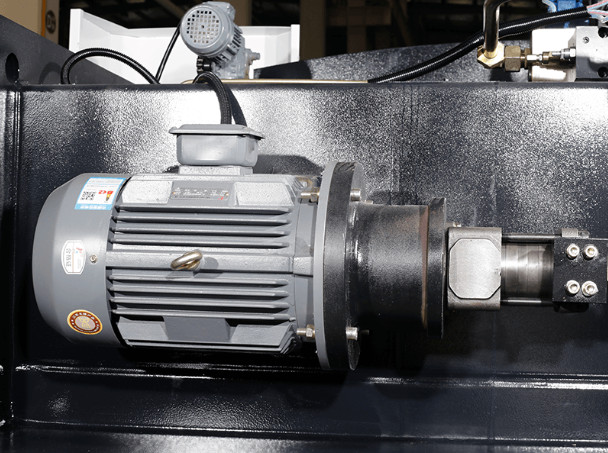

Motor

NC-motor Siemens motor is a famous and reputable brand from Germany, providing high performance, energy saving, large starting torque, excellent performance, low noise and vibration. with exceptional reliability. These motors comply with IEC standards for power levels and installation dimensions, making them easy to use and maintain. ADH press brake have the ability to customize machine capacity and voltage to match the specific voltage requirements of the customer's local area.

Oil pump

ADH NC Press Brake model WC67K/WC67E uses gear pumps, especially pumps from the US Sunny brand, operating at low noise and made from highly durable cast iron. Additionally, these pumps feature a unique internal noise reduction design and are capable of withstanding high pressures.

Our machines are designed to have low sensitivity to oil contamination, thus ensuring a long life.

Mechanical system

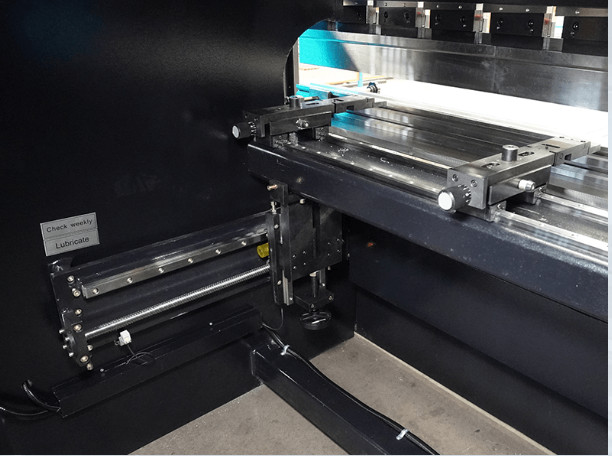

ADH NC Press Brake model WC67K/WC67E brand has an independently designed rear stop assembly with high precision, equipped with high precision ball screw, adjustable stop pin and the ability to manual lifting ability. This design allows our machines to adapt to many different types of punches.

Electrical equipment

ADH's NC bending machines use genuine Schneider components imported from France, providing stable and durable operation, ensuring long life.

Our machine is equipped with genuine Estun adaptive electrical box assembly, providing strong anti-interference ability and ensuring stable electrical operation.

Crowning

The mechanical compensation worktable is an effective solution to eliminate the impact of ram deformation on bending accuracy. This is achieved by adjusting the bulge at each position in the middle via a multi-point compensation worktable or a manual offset compensation worktable. In addition, it can also correct angle errors in different locations in the workpiece.

Shafts and moulds

Brake punches and dies are an important topic that should be discussed before ordering. A suitable punch and die set is required to achieve the desired bending shape. We can provide suitable tooling options based on the customer's specific bending requirements.

Twisted synchro bar

The torsional synchronization principle governs the vertical movement of the ram.

Servo motor mechanical system

The use of servo motors allows for more precise control.
