ADH CNC press brake model WAD/WADE

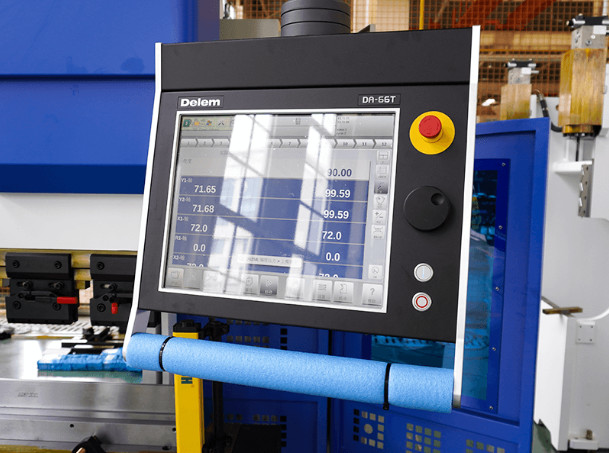

1. CNC controller

ADH CNC press brake model WAD/WADE is equipped with controllers from 3 reputable brands: Delem, ESA and Cybelec. These controllers are imported from the Netherlands, Italy and Switzerland respectively. Efficient algorithms optimize bending cycles, reducing setup times for work steps and improving the overall efficiency of the bending process, especially in batch processing situations. Furthermore, the system can accommodate both 2D and 3D graphics editing.

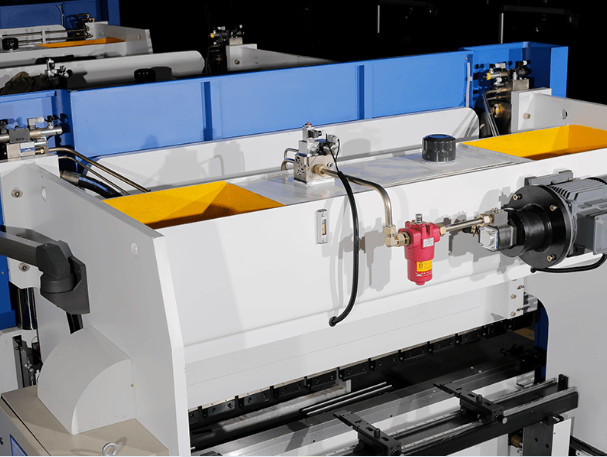

Hydraulic control system

This hydraulic control system uses an electro-hydraulic synchronous and servo design with minimal spacing between hydraulic cylinders. It boasts strong anti-eccentric loading capacity, high precision synchronization and impressive power density ratio, all at a low cost. Hydraulic system pressure can be adjusted to suit specific practical needs, allowing it to meet bending force requirements. ADH chose the famous German brand Hawei for the hydraulic system of CNC press brake model WAD/WADE, which stands out thanks to its high performance and low failure rate.

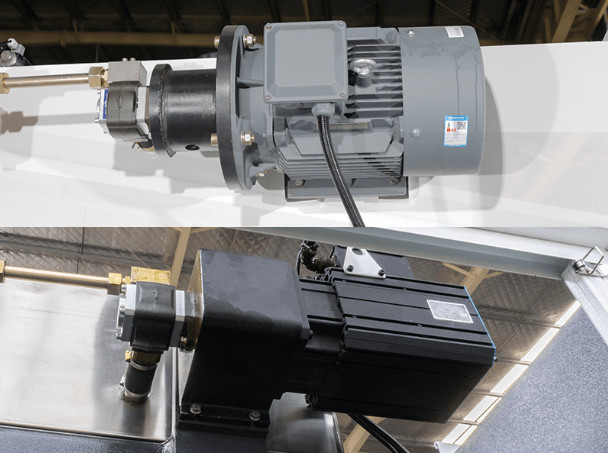

 Motor

As has been widely recognized, servo motors have emerged as a superior technology, aiming to achieve high driving force and improve machine production efficiency with low energy consumption. Compared to traditional motors, the use of servo motors can save energy by up to 35%, thereby giving customers the benefit of increased efficiency and reduced operating costs. Furthermore, ADH CNC press brake model WAD/WADE with efficient and energy-saving motor from Siemens, Germany, meets the daily production needs of customers. This motor is significantly more efficient than standard motors, increasing work efficiency.

Oil inject

The oil pump is constructed from highly durable cast iron and has a unique internal noise reduction design, making the pump less sensitive to oil contamination and extending its service life.

Mechanical system

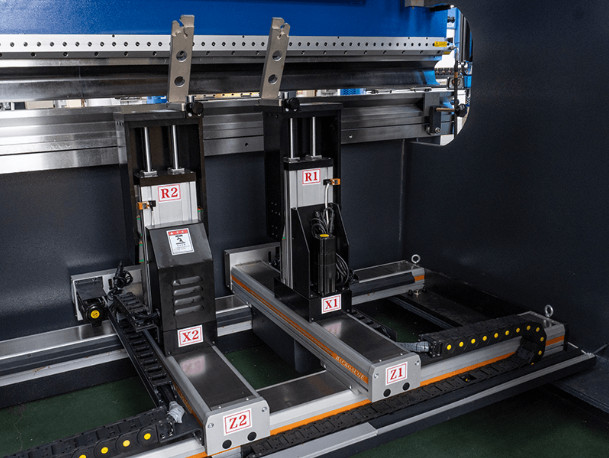

To ensure outstanding X-axis motion precision, ADH uses imported ball screws and linear guide rails instead of traditional screw rods. This choice enhances the precision and consistency of our manufacturing process. The WAD/WADE model CNC hydraulic press has a synchronous pulley mechanism that is controlled by an auxiliary motor for the rear stop, instead of a stepper motor. This upgrade provides better control and precision in machine operation. The entire mechanical system of the ADH CNC press brake model WAD/WADE undergoes a high-temperature annealing process to eliminate internal stresses, enhance the plasticity and durability of the metal, and prevent any any loss of accuracy due to frame distortion

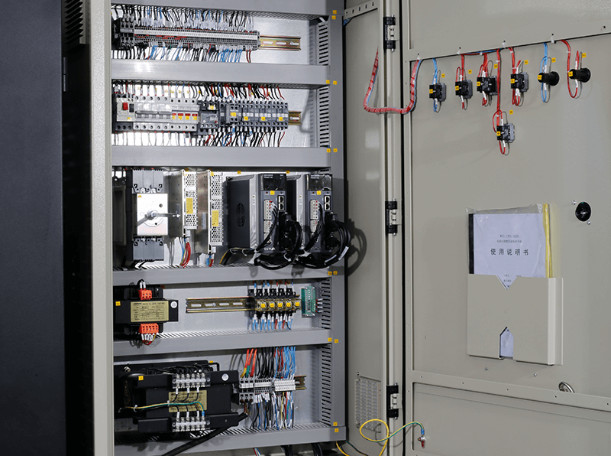

 Electric Parts

ADH uses genuine Schneider components imported from France, famous for their stability, durability and long lifespan. The machine is equipped with the original Estun adaptive power box, which has strong anti-interference ability and stable electrical performance.

 Crowning

The independently designed system of ADH CNC press brake model WAD/WADE calculates the compensation value based on the overall deformation of both the ram and the work table. This allows the bed's deformation curve to align with the compensation curve, ensuring optimal straightness and optimal angle consistency in our products.

Die and punch

Choosing the appropriate press brake punches and dies is an important aspect to consider before ordering. The correct combination of punch and die is essential to achieve the desired bending shape. We offer a variety of tailor-made tooling options to meet our customers' diverse bending requirements

Quick clamp

Our top clamps can be replaced easily and quickly, allowing for efficient use of time.

Ball screws & guide

The machine has ball screws and linear guide rails to ensure smooth and reliable operation.

Servo motor

Y-axis movement is precisely controlled by servo motors, ensuring outstanding precision.
