AMIG500P PLUS
Price: contact
AMIG500P PLUS Welding Machine : WELDING CABLE LONG 45m, WELDING PROCESS: FAST PULSE MIG (FP MIG)/ DEEP PENETRATION (PD MIG)/ DOUBLE PULSE MIG/ PULSE MIG/ CV MIG
Contact to purchase Download Catalogue
Product details

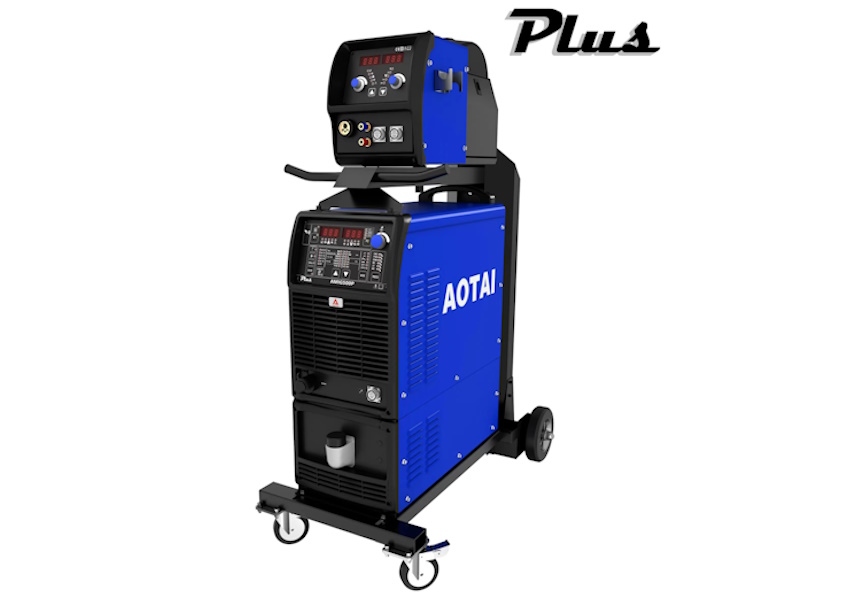

AMIG500P PLUS welding machine
Using the data of welding experts AOTAI offers the AMIG500P PLUS welding machine series with an intelligent combination of different welding parameters. Stable single pulse arc length , ensuring minimal spatter
Featured
- High frequency inverter: frequency 60kHz ; real-time droplet energy management, concentrated and hard arc
- Stable arc : 45m welding cable welds carbon steel in pulse mode, stable low current welding
- Precise current: extended application range for shielding gas, precise consistency between electrode extension and current
- Easy to start arc welding: starting mode is switched freely, high success rate
- Platform design: pulse, double pulse, fast pulse, deep penetration, CV and other advanced process modules, even custom process modules available
- Aluminum welding expert: strong oxidation film cleaning ability, high arc conductivity, even droplet transfer, beautiful welds
- Dual-core control: high-precision 32-bit dual ARM processor, nanosecond response speed
- Stable wire feeding: new double closed-loop wire feeding control system + high torque permanent magnet motor
- One-key operation: save and recall 100 sets of parameters
- Specific operating personnel: bound through IC cards to achieve process control and quality monitoring
- Eco design - Ecological design
| AMIG500P PLUS | |
| Rated input power (KVA) | 25 |
| Rated input current (A) | 38 |
| Welding current range (A) | 60~500 |
| Welding voltage range (V) | 17~39 |
| OCV (V) | 76 |
| Duty cycle (%) | 100% |
| Full load efficiency (%)) | ≥87 |
| Wire diameter (mm) | Ф1.0,Ф1.2,Ф1.4,Ф1.6 |
| Air flow (L/min) | 10~25 |
| Heat-isolation layer | H |
| IP layer | IP23 |
| Rated input voltage/frequency (V/Hz) | 3 phase, AC380V±10%, 50 /60Hz |
| Dimensions (mm) | 660*320*560 |
| Weight (kg/lb) | 55/121.3 |
