Medium to large gear machining machines! High performance and high precision features HERA-500/HERA-750/HERA-1000series deliver high production efficiency
Outstanding advantages
1. High precision:
The HERA-500/HERA-750/HERA-1000 machine is designed to machine gears with high precision, ensuring the size and shape of the final product meets the exact requirements.
2. Flexibility:
The HERA-500, HERA-750 and HERA-1000 versions are adaptable to many different types of gears, from small to large gears, facilitating flexibility in the production process.
3. High performance:
The machine is equipped with advanced technology and efficient features, helping to optimize productivity and reduce processing time, thereby enhancing production efficiency.
4. Durability and reliability:
Yunil is famous for the quality and reliability of its industrial products. The HERA-500/HERA-750/HERA-1000 are built to withstand daily use in industrial production environments.
5. Easy to operate:
The HERA-500/HERA-750/HERA-1000 machine is designed with a user-friendly and easy-to-use interface, helping operators operate efficiently and conveniently.
6. Flexibility in automation:
HERA-500/HERA-750/HERA-1000 machines can be integrated into production automation systems, helping to optimize production processes and reduce labor costs.

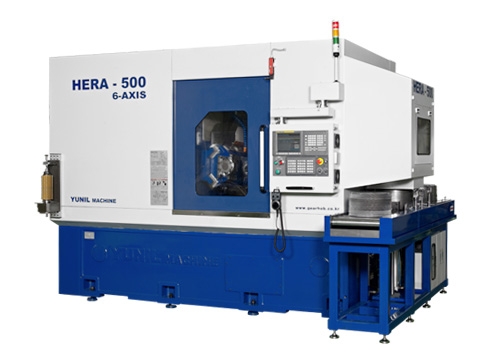

HERA-500
Machine capacity Maximum module Module 12.0 Maximum workpiece diameter 600mm Knife
head Maximum hob spindle speed (B axis) 500RPM Motor power 15kW Spindle taper bore BT# 50 Max hob diameter maximum ø280mm Maximum stove length 280mm Maximum stove travel (Y axis) 250mm Maximum rotation angle +35° / -45°
Table Maximum table speed (C axis) 50RPM Table load 3.5 tons Road table glass ø480mm Surrounding diameter 180 mm Table depth 250 mm
Working range Radial center distance (X-Axis) 360mm Maximum 420mm Minimum 60mm Cutting distance on work table (Z-Axis) 360mm Maximum 590mm Minimum 230mm Tailstock distance above work table 420mm Maximum 820mm Minimum 400mm
Machine Control system: Fanuc 0i MF Plus screen / 10.4" Total capacity 80KVA Floor area (estimated) Length 3500 mm Width 2800 mm Height 2900 mm Weighs 14 tons
HERA-750
Machine capacity Maximum module Module 16.0 Maximum workpiece diameter 7780mm Knife
head Maximum hob spindle speed (B axis) 450RPM Motor power 22kW Spindle taper bore HSK#100 Max hob diameter maximum ø300mm Maximum stove length 300mm Maximum stove travel (Y-Axis) 280mm Maximum rotation angle +35° / -45°
Table Maximum table speed (C-axis) 50RPM Table load 5.5 tons Road Table glass ø720mm Surrounding diameter 250 mm Table depth 300 mm
Non-working range Radial center distance (X-Axis) 550mm Max 630 mm Min 80mm Cutting distance on work table (Z-Axis) 480mm Max max 710mm Min 230mm Tailstock distance above work table 500mm Max 870mm Min 370mm
Machine Control system: Fanuc 0i MF Plus screen / 10.4" Total capacity 95KVA Floor area (estimated) Length 4500 mm Width 3000 mm Height 3200 mm Weight 18.5 tons
HERA-1000
Machine capacity Maximum module Module 16.0 Maximum workpiece diameter 1050mm
Tool head Maximum hob spindle speed (B axis) 400RPM Motor power 30kW Spindle taper bore HSK#100 Max hob diameter maximum ø320mm Maximum stove length 340mm Maximum stove travel (Y axis) 280mm Maximum rotation angle +35° / -45°
Table Maximum table speed (C axis) 50RPM Table load 5.5 tons Road Table glass ø950mm Surrounding diameter 250 mm Table depth 300 mm
Free working range Radial center distance (X-Axis) 700mm Max. 800mm Min . 100mm Cutting distance on work table (Z-Axis) 500mm Max. 780mm Minimum 280mm Tailstock distance above work table 500mm Maximum 870mm Minimum 370mm
Machine Control system: Fanuc 0i MF Plus screen / 10.4" Total capacity 150KVA Floor area (estimated) Length 5200 mm Height Width 3200 mm Height 3800 mm Weight 20 tons
