HERA-200S / HERA-350S: Gear grinder for heavy cutting. The bed structure is sturdy. Permanent automatic backlash elimination device - Gear for main shaft
Permanent automatic backlash elimination device - Gear for main shaft
Large, ultra-precise Master Gear (C-axis or high-torque integrated motor)
Perfect chip removal conveyor equipment bed
2. Outstanding advantages
2.1 Precision gear processing:
HERA-200S and HERA-350S are designed for grinding gears with high precision, ensuring the exact size, shape and surface quality of the final product.
2.2 Automotive industrial production:
In the automotive industry, this gear grinding machine is used to machine transmission components such as bevel gears, bevel gears, and other transmissions.
2.3 Production of industrial machinery and equipment:
HERA-200S and HERA-350S can be applied in the production of various industrial machinery and equipment parts, including special and complex gears.
2.4 Processing in the medical industry:
In medical equipment and medical machinery manufacturing, precision gear machining is extremely important, and HERA-200S / HERA-350Scan meet this need.

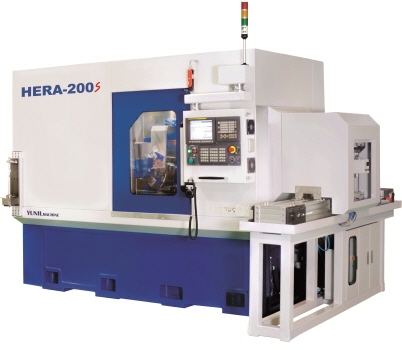

Hera-200
Machine capacity Maximum module Module 4.0 Maximum workpiece diameter 200mm
Knife head Maximum stove spindle speed (Axis B) 1,500RPM Motor power 5.5kW Spindle taper bore BT#40 Maximum stove diameter ø150mm Maximum stove length 200mm Maximum stove travel (Y axis) 180mm Maximum rotation angle +45° / -45°
Table Maximum Table Speed (C-Axis) 125RPM Table Diameter ø208mm
Working range Radial center distance (X axis) 250mm Max 285mm Min 35mm Cutting distance on work table (Z axis) 250mm Max 180mm Min 430mm Tailstock distance on work table 300mm Max 640mm Minimum 340mm
Machine Control system: Fanuc 0i MF Plus screen / 10.4" Total capacity 30KVA Floor area (estimated) Length 2,780mm Width 2,375mm Height 2,450mm Weight (Approximate) 9.0 tons

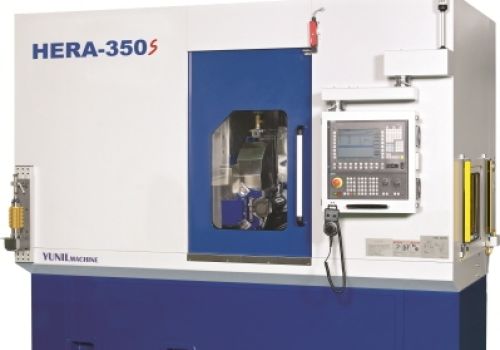

HERA-350
Machine capacity Maximum module Module 6.0 Maximum workpiece diameter 350mm
Knife head Maximum stove spindle speed (Axis B) 1,250RPM Motor power 11kW Spindle taper bore BT#40 Maximum stove diameter ø150mm Maximum stove length 200mm Maximum stove travel (Axis Y) 180mm Maximum rotation angle +45° / -45°
Table Maximum Table Speed (C-Axis) 500RPM Table Diameter ø300mm
Working range Radial center distance (X axis) 275mm Max 310mm Min 35mm Cutting distance on work table (Z axis) 320mm Max 470mm Min 150mm Tailstock distance on work table 350mm Max 760mm Minimum 410mm
Machine Control system: Fanuc 0i MF Plus screen / 10.4" Total capacity 35KVA Floor area (estimated) Length 2,920mm Width 2,375mm Height 2,650mm Weight (Approximate) 9.8 tons
